RYYT-2-500 Mini Box Folder Gluer Machine

Introduction:

RYYT-2-500 mini-box folder gluer, this is our regular model.

It is known as stable, flexible and user-friendly and has good reputation among our customers.

It can glue from small boxes to large boxes. For small boxes, it can make 40000 to 50000pcs per hour.

It is ideal equipment for printing industry.

Features:

1. Line speed: 0~150m/min adjustable

2. Paperboard: 210~500g/m2 paperboard

3. Box forming: One side and two sides gluing

4. Paper board feeding: Auto continuous feeding

5. Glue type: Cold glue

6. Power: Single phase, AC220V, 1.5Kw

7. Weight: 1100kg

8. Dimension: 2600×660×1112mm

9. Counting Range: 0~999999 (fully automatic, including batch counting)

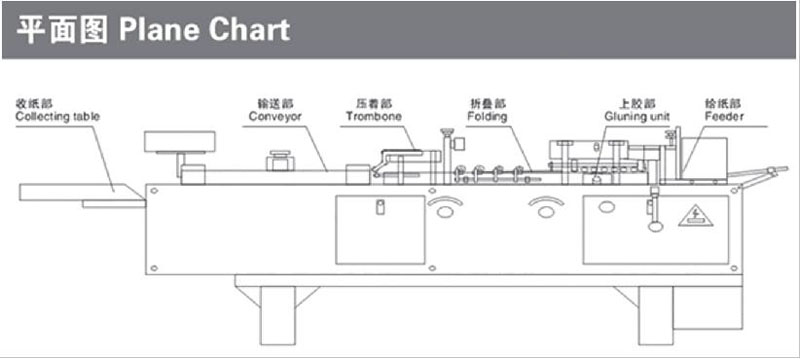

Plane Chart:

Main Technical Datas:



Model	RYYT-2-500
A Max	300mm
A Min	65mm
B Max	250mm
B Min	60mm
C Max	150mm
C Min	30mm
Power	220V/1.5Kw
Speed	0-160 m/min
Weight	1.1Ton
Dimension (mm)	2600x660x1112

Some machine photos:

Sample Photos:

Our Workshop:

Container Loading:
