RYGT-3B Full Automatic High speed Folder Gluer

Introduction:

RYGT-3B model high speed automatic folder gluer machine has all the function of RYGT-3A, use abroad famous brand electrical parts and spare parts. Mainly for exporting to abroad market. The box are pre-pressed, can be better glued. With board usage and flexible debug, it can paste various boxes, such as the medicine type box, cosmetic box and the smaller box. Such as match box etc. Speed can be more than 35000units/hour, The min widest can make the 70 mm open box size.

Main Technological Parameters:

RYGT-3B-800

Type of boxes	(Amax)	(Amin)	(Bmax)	(Bmin)	(Cmin)	(Dmin)	(Fmin)
Size	700mm	70mm	620mm	110mm	8mm	70mm	51mm

RYGT-3B-1200

Type of boxes	(Amax)	(Amin)	(Bmax)	(Bmin)	(Cmin)	(Dmin)	(Fmin)
Size	700mm	70mm	800mm	110mm	8mm	70mm	51mm

Characteristics

Linear velocity	0～200m/min
Suitable paper quality	220～800g／m² carton paper and E wave corrugated paper
Paste box basic form	One-side edge pastes, two-side edge pastes.
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	AC220V  7KW
Weight	1800KG
Overall Size	7000×850 (1300)×1300mm
The scope of Count	0～999999

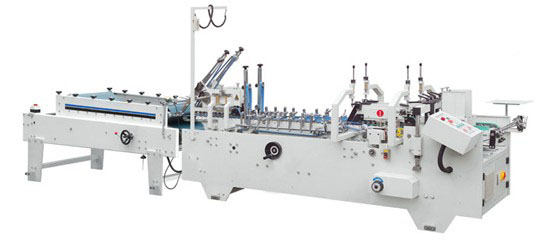

Machine Photos:

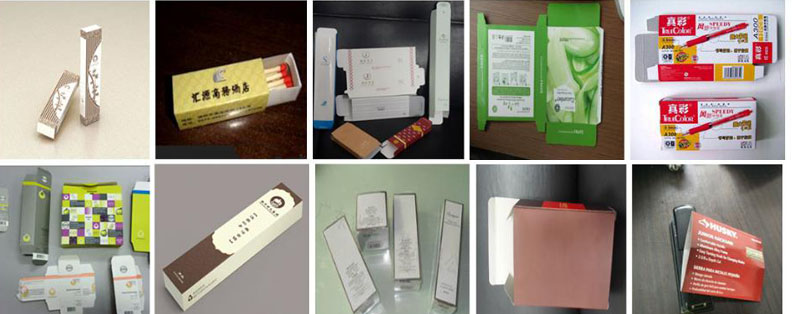

Product samples:

Processing Center:

Package Photos:
