RYYT-2-800 Automatic Folder Gluer Machine

Introduction:

RYYT-2-800 mini-box folder gluer, this is our regular model.

It is known as stable, flexible and user-friendly and has good reputation among our customers.

It can glue from small boxes to large boxes. For small boxes, it can make 40000 to 50000pcs per hour.

It is ideal equipment for printing industry.

Features:

1. Line speed: 0~220m/min adjustable

2. Paperboard: 210~600g/m2 paperboard

3. Box forming: One side and two sides gluing

4. Paper board feeding: Auto continuous feeding

5. Glue type: Cold glue

6. Power: Single phase, AC220V, 2.2Kw

7. Weight: 1800kg

8. Dimension: 5800×900×1300mm

9. Counting Range: 0~999999 (fully automatic, including batch counting)

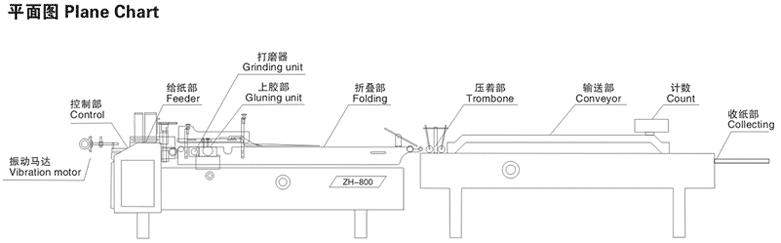

Plane Chart:

Main Technical Datas:



Model	RYYT-2-800	RYYT-2-800C	RYYT-2-880	RYYT-2-1000
A Max	560mm	450mm	600mm	760mm
A Min	105mm	65mm	105mm	130mm
B Max	550mm	550mm	550mm	6000mm
B Min	50mm	50mm	80mm	80mm
C Max	270mm	170mm	330mm	380mm
C Min	50mm	30mm	50mm	60mm
Power	220V/2.2Kw	220V/2.2Kw	220V/2.2Kw	220V/2.2Kw
Speed	0-220 m/min	0-220 m/min	0-220 m/min	0-220 m/min
Weight	1.5Ton	1.5Ton	2.0Ton	2.3Ton
Dimension (mm)	5800x900x1300	5800x900x1300	5800x1050x1300	5800x1200x1300

Note: For mini-boxes, size A from 30-65mm, you can use one side of the machine for folder gluer. But for different sizes, we need offer to you different spare parts for adjust the sizes.If you want to produce boxes with size A from 30-65mm, kindly let us know the box sizes.

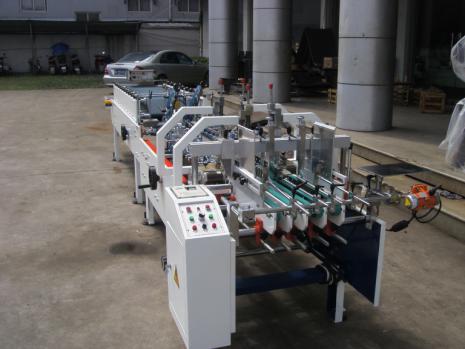

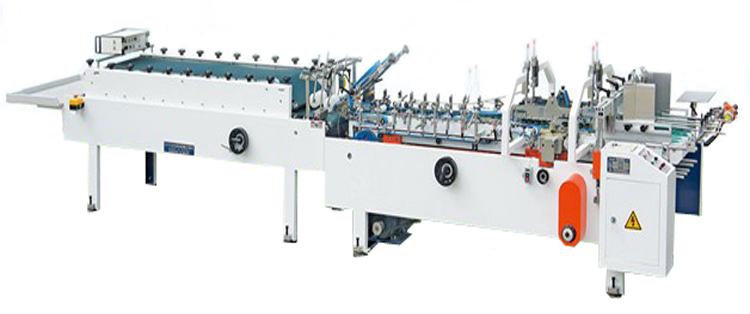

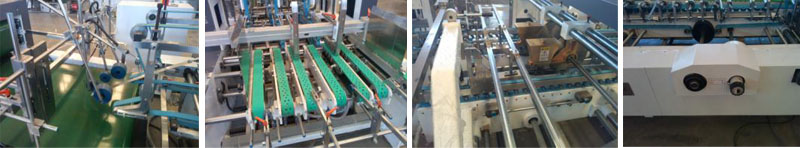

Some machine photos:

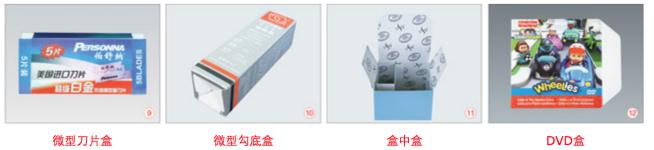

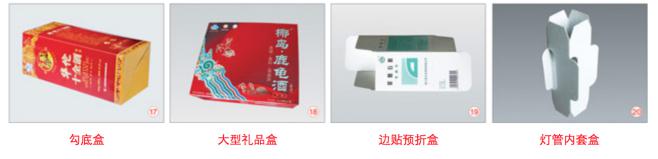

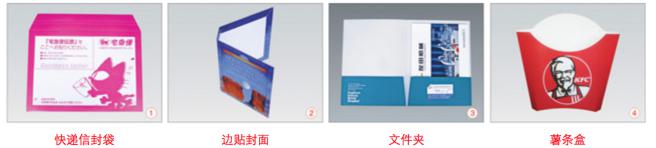

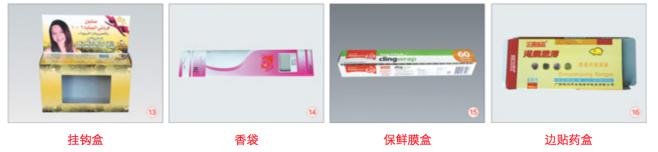

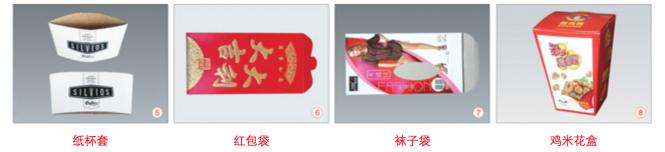

Sample Photos:

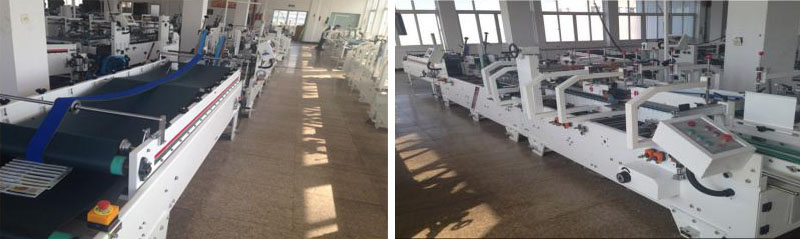

Our Workshop:

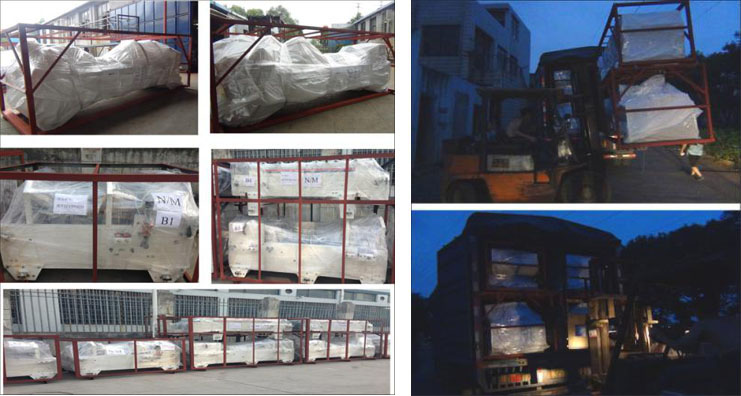

Container Loading:
