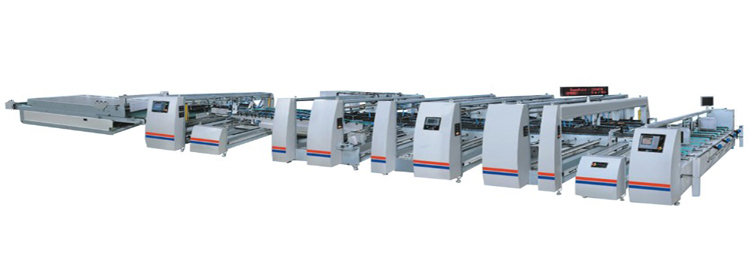

RYJY 4,6 corner Full Automatic Folder Gluer Machine

Main features：

Modulation structure design, can upgrade machine function according to customer’s requirement.

The whole machine drive way adopts independent synchronized motor drive.

Special equipped with paper regulator device.

Strengthen the broadening upper and lower belt drive, suitable for corrugated cartons.

The whole machine guide board adjust is electric mobile system, easy commissioning.

Upper and lower board movement adopts straight line rail system,to ensure the mechanical accuracy of movement.

Humanized design attachment installation, easy operation.

A hexagon spanner can adjust the whole set of machine , easy operation.

Pressing unit has regulator, and collecting unit has patting device, can effectively avoid the “scissors mouth” phenomenon of corrugated products.

Collecting paper unit adopts cylinder type pressing system, easy for adjust pressure, and make the products can pasted effectively.

Touch screen control plane.

Remote control convenience for operators to remote control the start and stop of machine .

Specification：

Model	RYJY1200	RYJY1450	RYJY1700	RYJY2100	RYJY2300	RYJY2800
Max.sheet size (mm)	1200X1300	1450X1300	1700X1300	2100X1300	2300X1300	2800X1300
Min.sheet size(mm)	420X180	420X180	420X180	520X180	520X180	520X180
Applicable paper	Cardboard 300g-800g   corrugated paper F、E、C、B、A、EB、AB
Max.belt speed	240m/min	240m/min	240m/min	240m/min	240m/min	240m/min
Machine length	22000mm	22000mm	22000mm	22000mm	22000mm	22000mm
Machine width	2400mm	2700mm	2900mm	3400mm	3600mm	4200mm
Machine height	2000mm	2000mm	2000mm	2000mm	2000mm	2000mm
Total power	42KW	42KW	45KW	45KW	45KW	45KW
Max.air displacement	0.7m³/min	0.7m³/min	0.7m³/min	0.7m³/min	0.7m³/min	0.7m³/min
Total weight	14500kg	15000kg	15500kg	16000kg	16500kg	17500kg



	Model	RYJY1200		RYJY1450		RYJY1700		RYJY2100			RYJY2300			RYJY2800
		Max	Min	Max	Min	Max	Min	Max	Min		Max	Min		Max	Min
	A	1200	420	1450	420	1700	420	2100	520		2300	520		2800	520
	B	1300	150	1300	150	1300	150	1300	150		1300	150		1300	150
	C		205		205		205		275			275			275
	D		50		50		50		50			50			50
	A	1200	420	1450	420	1700	420	2100	520		2300	420		2800	520
	B		205		205		205		275			205			275
	C	840	100	840	100	840	100	840		100	840		100	840	100
	D	300	35	300	35	300	35	300		35	300		35	300	35
	E		50		50		50			50			50		50
	A	1000	260	1200	260	1480	260	1580		290	1680		290	1680	290
	B	940	200	1140	200	1420	200	1500		250	1600		250	1600	250
	C	200	30	200	30	200	30	250		40	250		40	250	40
	D	1000		1000		1000		1100			1100			1100
	E		100		100		100			150			150		150
	A	1000		1200		1400		1400			1400			1400
	B	700		800		1000		1000			1000			1000
	C		100		100		100			150			150		150
	D	450		500		600		650			700			800
	E	150	45	200	35	200	35	200		50	200		50	200	50
	A	1200	420	1450	420	1700	420	2100		520	2300		520	2800	520
	B	1300	180	1300	180	1300	180	1300		180	1300		180	1300	180
	C		205		205		205			275			275		275
	D		50		50		50			50			50		50

Due to technology upgrading, our company reserves the right to modify the relevant parameters and functions, without prior notice.

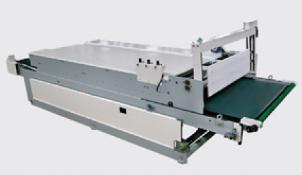

CONVEYOR UNIT

Patting correcting and positioning before enter collecting paper unit, to make sure that the formed cartons have not “scissors mouth” phenomenon.

TROMBONE UNIT

Upper and lower belt can move forward and backward to adjust, equipped with trimming correction device, paper jammed detection device.

FOLDING UNIT

Special super long folding module, ensure paperboard natural forming after full stretch in this function, left and right conveyor belts speed is adjustable, can correction cartons again and ensure conveying in straight line.

BOTTOM GLUE+ BACK FOLDING MODLUE

We specially designed back folding institution, adopted with high precision servo control system to drive, to realize the special folding function of bottom folding, front hook, back folding etc, can meet all kinds of abnor,al cartons, four/six points carton function.

REGULATION UNIT

The paperboard send out by feeder unit can be corrected throughm regulation unit, ensure the precision of conveying. The upper pressure drive can up and down adjust, to adapt to different paperboard’s thickness.

FEEDER UNIT

Double servo synchronized feeding paper system. Vacuum suction belt, ensure cardboard conveying accurate and stable.

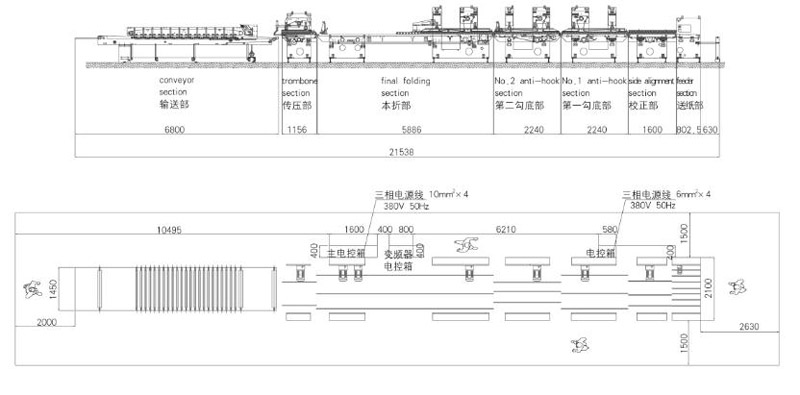

Floor Plan:
