DetailWelcome to visit Cangzhou ROYAL Packing Machinery Co.,Ltd.

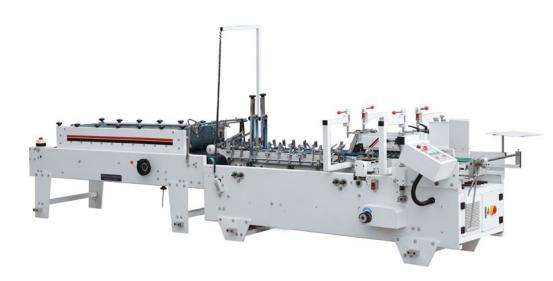

RYGT-3A Automatic Folder Gluer

RYGT-3A model automatic folder gluer machine belongs to economic type product, with board usage and flexible debug .It can paste various boxes ,such as the medicine type box ,cosmetic box and the smaller box. Such as match box etc. The min widest can make the 70 mm open box size.

Main Technological Parameters:

RYGT-3A-600 (Narrow belt)

Type of boxes	(Amax)	(Amin)	(Bmax)	(Bmin)	(Cmin)	(Dmin)	(Fmin)
box	700mm	70mm	350mm	70mm	8mm	60mm	40mm

RYGT-3A-600 (Wide belt)

Type of boxes	(Amax)	(Amin)	(Bmax)	(Bmin)	(Cmin)	(Dmin)	(Fmin)
box	700mm	70mm	500mm	110mm	8mm	60mm	40mm

Characteristics

Linear velocity	0～200m/min
Suitable paper quality	220～800g／m² carton paper and E wave corrugated paper
Paste box basic form	One-side edge pastes, two-side edge pastes.
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	AC220V 2.2KW
Weight	1500KG
Overall Size	5300×820×1300mm
The scope of Count	0～999999

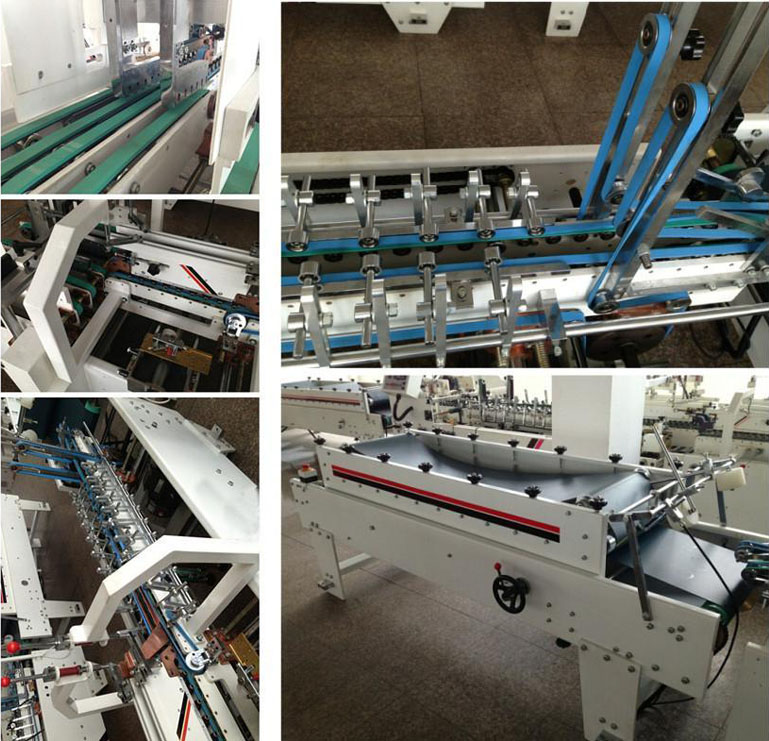

Machine photos:

Samples

Processing Photos:

Packing photos:
