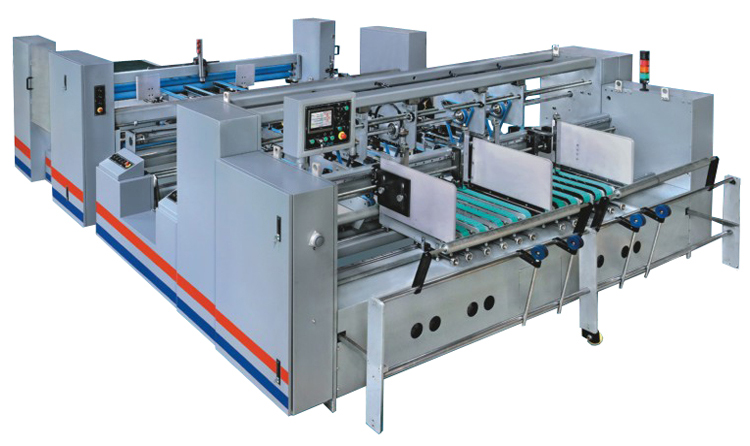

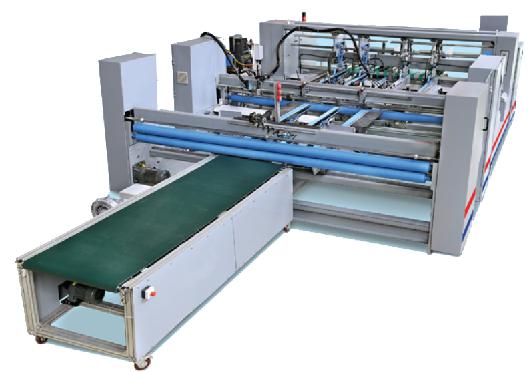

RYJX Full Automatic Twin Box Folder Gluer

Machine (1700/1900/2400/2800/3200)

Main Features：

We carefully research the two-piece connected colorful corrugated folder gluer machine for Chinese market. This kind of machine not only adopts single piece feeding, but also adopts two-piece connected feeding. In order to avoid the limited of front printing equipment process, this machine save labor and save materials. This machine is a practical equipment for increasing user’s profits and accept orders ability due to its easy operation, high efficient production, reduce labor costs.

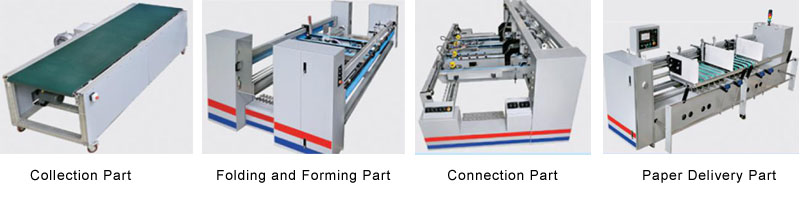

Two-piece connected colorful corrugated folder gluer machine, consists of two-piece feeding system, servo positioning regulating connecting system, patting pressing conveying system. No matter it is flat box or abnormal box, transverse corrugated, vertical corrugated paperboard, all can be precise glued and formed in a high speed at a time.

Modulation structure design, can upgrade machine function accordion to customer’s requirement.

Specification:

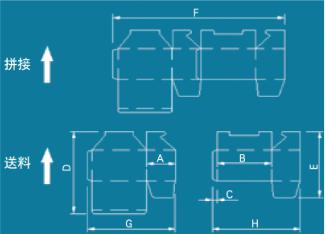

	Model	RYJX1700		RYJX1900		RYJX2400		RYJX2800		RYJX3200
		Max	Min	Max	Min	Max	Min	Max	Min	Max	Min
	A		150		150		150		150		150
	B	650	240	750	240	880	240	1000	240	1200	240
	C	50	30	50	30	50	30	60	30	60	30
	D	1100		1100		1100		1100		1100
	E	1000	420	1000	420	1000	420	1000	420	1000	420
	F	1640		1840		2340		2740		3140
	G		520		520		520		520		520
	H		520		520		520		520		520



Model	RYJX1700	RYJX 1900	RYJX 2400	RYJX 2800	RYJX 3200
Max.sheet size	850*1100mm	950*1100mm	1200*1100mm	1400*1100mm	1600*1100mm
Min.sheet size	520*320mm	520*320mm	520*320mm	520*320mm	520*320mm
Applicable paper	Corrugated paper E、B、C、A、AB
Max.belt speed	120m/min	120m/min	120m/min	120m/min	120m/min

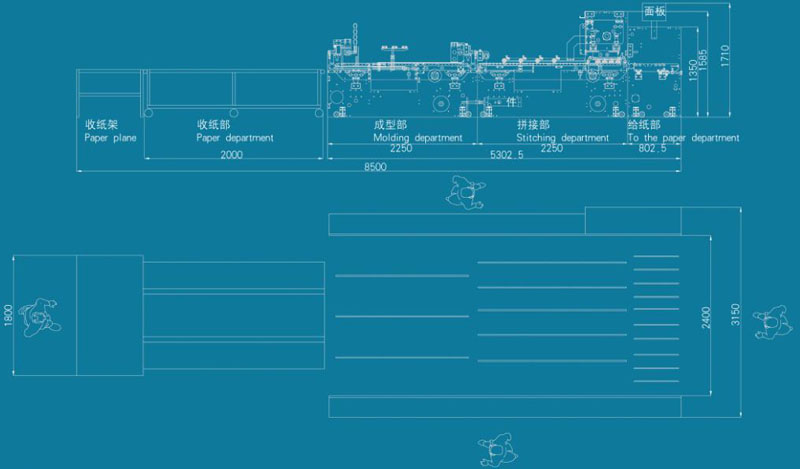

Machine length	6800mm	6800mm	6800mm	6800mm	6800mm
Machine width	2800mm	3000mm	3600mm	4000mm	4400mm
Machine height	1450mm	1450mm	1450mm	1450mm	1450mm
Total power	21KW	21KW	21KW	21KW	21KW
Max.air displacement	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min	0.7m3/min
Total weight	5000kg	5200kg	5600kg	5800kg	6200kg

Due to technology upgrading, our company reserves the right to modify the relevant parameters and functions, without prior notice.
