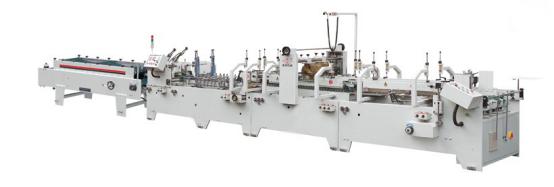

RYGT-1A Pre-folder & Crash Lock bottom Automatic Folder Gluer (E flute)

Introduction:

This series machine is suitable for making medicine paper box, cosmetic box, electric components box, and toothpaste box, CD box and French fries box etc RYGT-1A Pre-folder & Crash Lock bottom Automatic Folder Gluer machine belongs to the equipment with four-folded/edged-bottom. The machine is able to 2-folding, 4-folding with bottom gluing. In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree or 150 degree. The second fold and the fourth fold can be molded in 180 degree; the special design is also available. Use imported electrical appliances, and accessories for export before and after the single inverter separate operation. High speed, reasonable structure, convenient and flexible operating characteristics. It is suitable for the paste process, such as the edged-medicine box, wine box, cosmetic box CD box and French fries box etc .As well as pasting the paper box without edged-bottom.

Main Technological Parameters:

RYGT-1A-800

Type of boxes	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	70mm	800mm	110mm	8mm	70mm	51mm
Edge Bottom box	700mm	160mm	770mm	180mm	9mm	90mm	85mm

RYGT-1A-900

Type of boxes	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	70mm	900mm	110mm	8mm	70mm	51mm
Edge Bottom box	700mm	160mm	870mm	180mm	9mm	90mm	85mm

Characteristics:

Max linear velocity	220m/min
Suitable paper quality	220~800g/m2 Cardboard and E wave corrugated paper.
Paste box basic form	One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
Way of folding in reverse	One and three fold 90degree, two and four fold 180degree.
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	8KW, 380V
Overall Size	9200*1100(1300)(1400)*1350mm

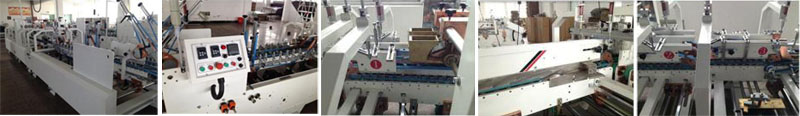

Machine Photos:

Sample Photos:

Processing Center:

Machine Packing:
