DetailWelcome to visit Cangzhou ROYAL Packing Machinery Co.,Ltd.RYGT-1C Corrugated Box Pre-folder & Crash Lock bottom Folder Gluer
Introduction:
RYGT-1C Series is a new economical High speed and crash lock bottom automatic folder gluer .The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. is more economical, more practical models. Professional for the wine box, gluing side keep straight no inclined, sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom. Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box.
Main Technological Parameters:
RYGT-1C-840
|

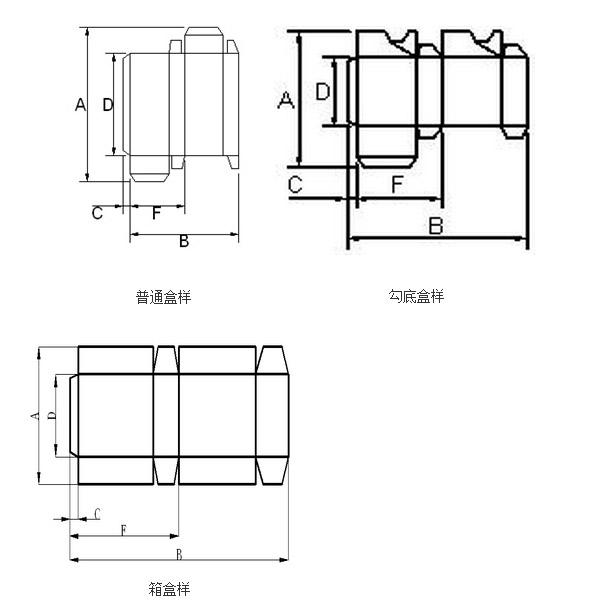

Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
840mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
790mm |
180mm |
12mm |
120mm |
RYGT-1C-1050
|
Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
1050mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
920mm |
180mm |
12mm |
120mm |
RYGT-1C-1250
|
Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
1250mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
1100mm |
180mm |
12mm |
120mm |
RYGT-1C-1450
|
Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
1450mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
1300mm |
180mm |
12mm |
120mm |
RYGT-1C-1650
|
Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
1650mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
1300mm |
180mm |
12mm |
120mm |
RYGT-1C-1850
|
Type of box |
Amax |
Amin |
Bmax |
Bmin |
Cmin |
Dmin |
|
No-edged bottom box |
700mm |
150mm |
1850mm |
160mm |
10mm |
100mm |
|
Edgde Bottom box |
700mm |
160mm |
1300mm |
180mm |
12mm |
120mm |
|
Max linear velocity |
220m/min |
|
Suitable paper quality |
200~700g/m2 Cardboard and B, C, E and F wave corrugated paper. |
|
Feeding way |
Automatically and continuously feeding |
|
Needed power |
11KW 380V |
|
Overall Size |
11000 x1450 (1650)(1850)(2100)x 1400mm |
|
Weight |
2800 (3200)(3600)(4200) |
Electrical configuration:
|
No. |
Products name |
Model |
QTY |
Factory |
|
1 |
Limit switch |
JLXK1-511 |
1 |
Tengen |
|
2 |
Combination switch |
HZ5-20/4 L02 |
1 |
Yaming |
|
3 |
Button switch |
XB2BA45 1A1B |
6 |
IDEC(Japan) |
|
4 |
Button switch |
XB2BA35 1A1B |
8 |
IDEC(Japan) |
|
5 |
Option switch |
XB2BD21C |
1 |
IDEC(Japan) |
|
6 |
Emergency switch |
AR22ER |
3 |
IDEC(Japan) |
|
7 |
Indicator light |
φ22 220 |
1 |
ATP |
|
8 |
Contact relay |
3TH8040 220V |
3 |
Siemens(German) |
|
9 |
BK100 transformer |
Input 220V Output36V 24V |
1 |
Jindong |
|
10 |
Terminals |
TK010 10A |
60 |
Siemens(German) |
|
11 |
Grinding switch |
BS211B |
1 |
Siemens(German) |
|
12 |
Air switch |
2P 16A |
1 |
Delixi |
|
13 |
Air switch |
3P 16A |
1 |
Delixi |
|
14 |
Rectifier |
C1010 10A |
2 |
Siemens(German) |
|
15 |
Air plug |
φ48-26 |
2 |
Maifeng |
|
16 |
Air plug |
φ40-16 |
1 |
Maifeng |
|
17 |
Potentiometer |
4K7 |
2 |
Huayu |
|
18 |
Time relay |
AH3-3 3S |
1 |
Songlin |
|
19 |
Calculagraph socket |
PF083A |
1 |
Songlin |
|
20 |
Intermediary |
RH2B-UAC220 |
1 |
IDEC(Japan) |
|
21 |
Relay socket |
PTF08A |
1 |
IDEC(Japan) |
|
22 |
Inverter |
7.5KW/0.75KW |
2 |
SCHNEIDER(FRANCE) |

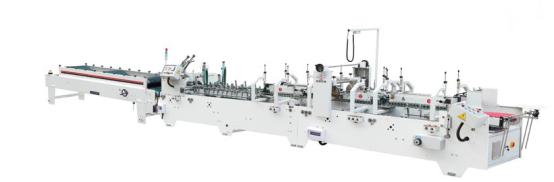

Machine Photos:
.jpg)

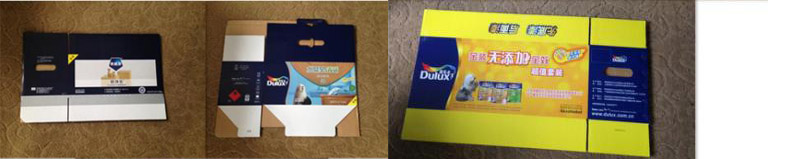

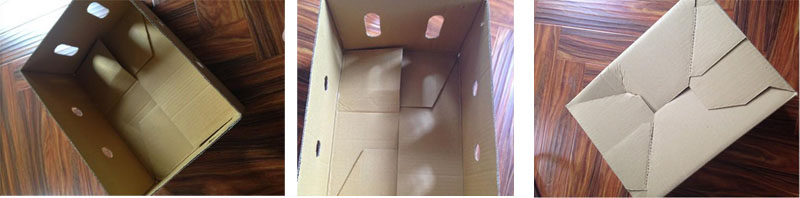

Sample box:
Processing center:
Package photo:
