RYGT-1B Pre-fold and Crash lock bottom Folder gluer

RYGT-1B Series is a new economical High speed and crash lock bottom automatic folder gluer.

The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. It is more economical, more practical models. Professional for the corrugated box, gluing side keep straight no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box.



Type of boxes	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	110mm	600mm	110mm	8mm	70mm	51mm
Edges bottom box	700mm	160mm	570mm	180mm	9mm	90mm	85mm

RYGT-1B-600

RYGT-1B-800

Type of boxes	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	110mm	800mm	110mm	8mm	70mm	51mm
Edges bottom box	700mm	160mm	770mm	180mm	9mm	90mm	85mm

Technological Parameters

Max linear velocity	220m/min
Suitable paper quality	220~800g/m2 Cardpaper and E and F wave corrugated paper.
Paste box basic form	One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste
Way of folding in reverse	One and three fold 90o ,two and four fold 180o
Feeding way	Automatically and continuously feeding
Needed power	7.5KW  380V
Overall Size	10300~1000(1300)~1350mm

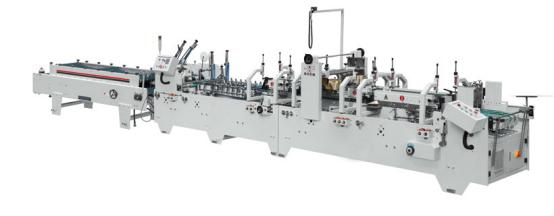

Machine Photos:

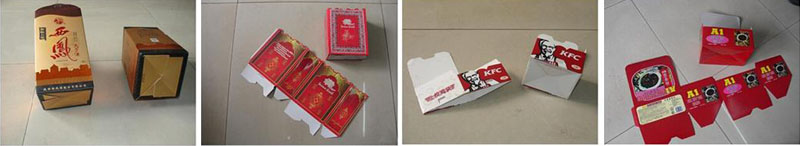

Sample Photos:

Processing Photos:

Packing photos:
