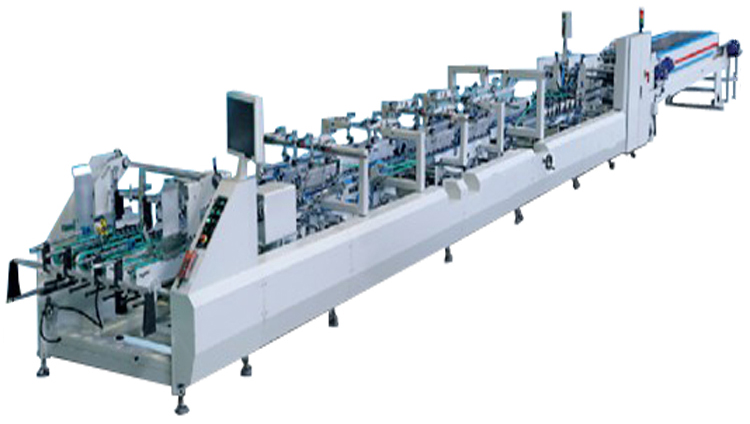

RYJE 4,6 corner Folder Gluer Machine

Main features：

Modulation structure design,can upgrade machine function according to customer’s requires.

Humanized design attachment installation, easy operation and fast.

Special equipped with paper regulator device.

Special first folding line ,third folding line pre-fold 180°.

Sectional-type hook device.

Touch screen control plane.

High speed electric kick board counter.

Collecting unit cylinder control pressure type pressing system.

Remote control convenience for operators to remote control the start and stop of machine.

Specification：

	Model	RYJE650		RYJE850		RYJE1100
		Max	Min	Max	Min	Max	Min
	A	650	100	850	100	1100	100
	B	700	50	900	50	9 00	50
	C		45		45		45
	D		10		10		10
	A	650	160	850	160	1100	160
	B		75		75		75
	C	450	60	650	60	650	60
	D	150	25	150	25	150	25
	E		25		25		25
	A	500	160	700	160	160	160
	B		100		100		100
	C		30		30		30
	D	600		600		600
	E		100		100		100
	A	600	290	700	290	900	290
	B	550	180	550	180	550	180
	C		120		120		120
	D		100		100		100
	E		30		30		30



Model	RYJE650	RYJE850	RYJE1100
Max. sheet size	650X700mm	850X900mm	1100X900mm
Min. sheet size	100X50mm	100X50mm	100X50mm
Applicable paper	Cardboard 250g-800g , corrugated paper F、E
Max. belt speed	450m/min	450m/min	450m/min
Machine length	16800mm	16800mm	16800mm
Machine width	1350mm	1500mm	1800mm
Machine height	1450mm	1450mm	1450mm
Total power	18.5KW	18.5KW	18.5KW
Max.air displacement	0.7m³/min	0.7m³/min	0.7m³/min
Total weight	5500kg	6000kg	6500kg

Due to technology upgrading, our company reserves the right to modify the relevant parameters and functions, without prior notice.

CONVEYOR

Movable stacking belts of 2 boards on left and right, adjustable on-line per stacking requirement to improve efficiency.

Extra sponge belt for pressing of concave part the box piles.

Air-pressed easy adjustment to ensure even pressure of gluing.

Synchronized in proporition with main motor in automatic mode to improve stable stacking.

TROMBONE (PRESSING)

Auto-collection of paper/ sheet and water spray by photoelectric counter.

Paper-jam inspection device.

Adjustable upper and lower belts for easy and simply.

FOLDING

2^nd crease 180 degree, 4th crease 180 degree.

Specifically designed to adjust belt feeding speed separately to correct box embryo running direction and ensure straight feeding.

BOTTOM-FOLDING

Equipped with bottom lock combination/adjustment. With ideally flexible design that ensures fast and easy operation.

Sectional belt feeder with special design, flexible and adjustable per product requirement without tightening or loosening the belt.

Electronic glue sprayer(required)

PRE-FOLDING

Specific design ensure 180 degree on 1st crease and 165 degree on 3rd crease.

4/6 back-hook system can be added as upgrade(optional)

PAPER REGULATION

Auto-correction of paper/sheets from the Feeder endures feeding accuracy.

Adjustable press drive fit for various thickness of paper/sheets.

FEEDER

Independent motor driving system

Synchronized feeding with main motor

Equipped with cibrating sheet separation system.

Floor Plan
