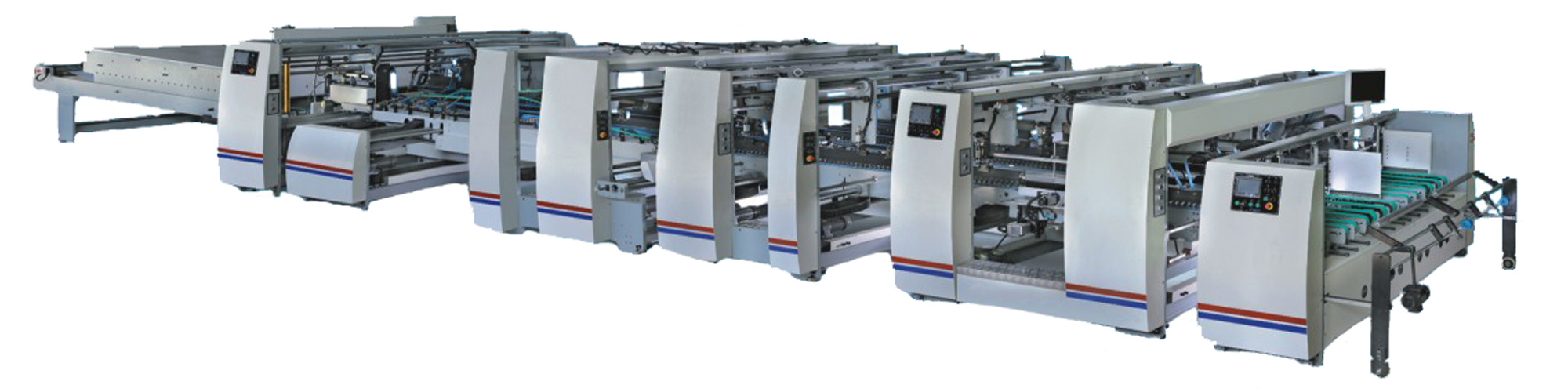

RYJR Full Automatic Twin Box Folder Gluer

Main features：

We carefully research the two-piece connected colorful corrugated folder gluer machine for Chinese market. This kind of machine not only adopts single piece feeding, but also adopts two-piece connected feeding. In order to avoid the limited of front printing equipment process, this machine save labor and save materials. This machine is a practical equipment for increasing user’s profits and accept orders ability due to its easy operation, high efficient production, reduce labor costs.

Two-piece connected colorful corrugated folder gluer machine, consists of two-piece feeding system, servo positioning regulating connecting system, folding system, transmission pressing edge correcting system, patting pressing conveying system. No matter it is flat box or abnormal box, transverse corrugated, vertical corrugated paperboard, all can be precise glued and formed in a high speed at a time.

When using single piece feeding system, can be used as general folder gluer machine.

Modulation structure design, can upgrade machine function according to customer’s requirement.

Specification：

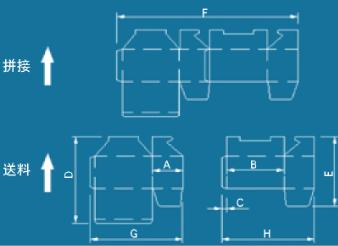

Box Type	Model	RYJY1700		RYJR1900		RYJR2400			RYJR2800		RYJR3200
		Max	Min	Max	Min	Max		Min	Max	Min	Max	Min
	A		100		100		100			100		100
	B	650	240	750	240	880	240		1000	240	1200	240
	C	50	30	50	30	50	30		50	30	50	30
	D	1100		1100		1100			1100		1100
	E	1000	420	1000	420	1000	420		1000	420	1000	420
	F	1640		1840		2340			2740		3140
	G		520		520		520			520		520
	H		520		520		520			520		520



Model	RYJR1700	RYJR1900	RYJR2400	RYJR2800	RYJR3200
Max.sheet size ( single ply)	850X1100mm	950X1100mm	1200X1100mm	1400X1100mm	1600X1100mm
Min.sheet size（single ply）	520X320mm	520X320mm	520X320mm	520X320mm	520X320mm
Applicable paper	Corrugated paper E、B、C、A、AB
Max.belt speed	200m/min	200m/min	200m/min	200m/min	200m/min
Machine length	18800mm	18800mm	18800mm	18800mm	18800mm
Machine width	2800mm	3000mm	3600mm	4000mm	4400mm
Machine height	2000mm	2000mm	2000mm	2000mm	2000mm
Total power	42KW	42KW	42KW	46KW	46KW
Max.air displacement	0.7m³/min	0.7m³/min	0.7m³/min	0.7m³/min	0.7m³/min
Total weight	12500kg	13000kg	13600kg	14300kg	15000kg



Due to technology upgrading, our company reserves the right to modify the relevant parameters and functions, without prior notice.

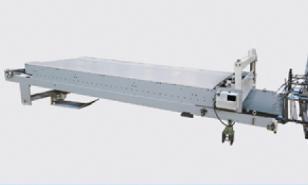

CONVEYOR UNIT

Patting correcting and positioning before enter collecting paper unit, to make sure that the formed cartons have not “scissors mouth” phenomenon.

TROMBONE UNIT

Upper and lower belt can move forward and backward to adjust, equipped with trimming correction device, paper jammed detection device.

FOLDING UNIT

Special super long folding module, ensure paperboard natural forming after full stretch in this function, left and right conveyor belts speed is adjustable, can correction cartons again and ensure conveying in straight line.

BOTTOM GLUE

Equipped with four groups of front hook modules, to realize bottom folding function.

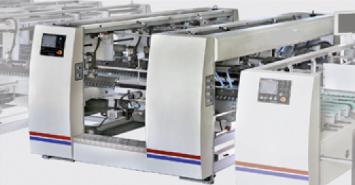

CONNECTION UNIT

Four group of servo pushback position system, ensure cartons, ensure the carton height precision. Two groups of pneumatic side positioning system, ensure the precision of carton connection mouth. Two pieces conveying and connected during conveying, PLC and human-computer interface control, ensure connection precision.



FEEDER UNIT



Double servo synchronized feeding paper system. Vacuum suction belt, ensure cardboard conveying accurate and stable.
