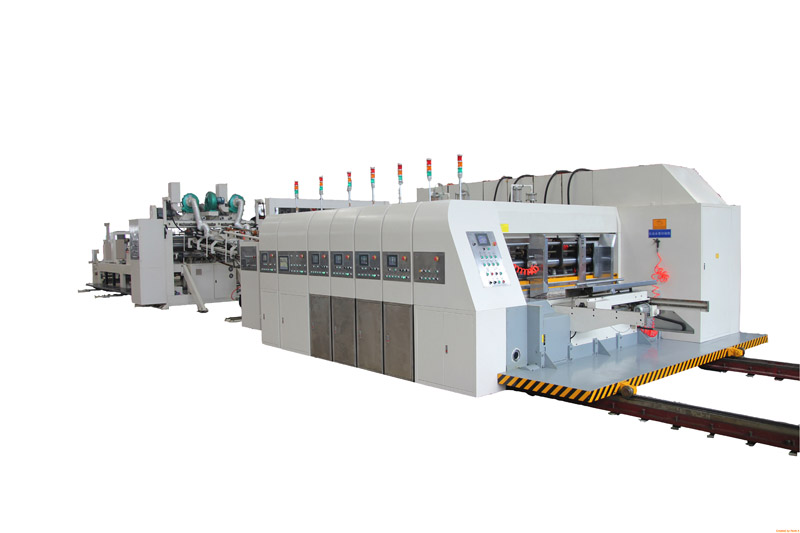

RYYKM-920 Flexo printing Folder Gluer

1. Automatic Flexo Folder Gluer With Full Computer Control

Model: VOLANS-920DVFG One set

380V   AC3Φ     50HZ

Effective Sheet Size : 900 mmx 2000 mm (e x L)

Machinery Speed : 300 sheets/min

Production Speed : 250 sheets/min

Max. Sheet Size : 900 mm x 2000mm (e x L)

Max. Size( Skip Feed) : 1200mm x 2000mm (e x L)

Min. Sheet Size : 250mm x 600mm (Printer Slotter & DieCutter) (e x L)

: 320mm  x 600mm (Vacuum Transfer) (e x L)

: 250mm  x 1000mm (Inline Folder Gluer) (e x L)

Max. Printing Area : 900mm x 1900mm (e x H)

Max. Slotting Depth : 300mm (E)

Min. Carton Size  (A=C, B=D)   : 140 x 140mm (Positive Knife)/ 220 x 70mm (Inverse knife) (optional) (A x B)

: 250 mm x 250 mm (inline Folder Gluer)  (A x B)

Printing Registration : ±0.5mm

Slotting Precision : ±1.0mm

Diecutting Precision : ±1.2mm

Folding Precision : ±1.5mm

Flexo Plate Thickness : 7.0 mm

Power Required : 116.5Kw

Dimensions : 28646mm x 4340mm x 2800mm (Up to specific configuration)

Machine Weights : 59800kgs (Up to specific configuration)

Automatic Flexo Folder Gluer

Model: VOLANS-920DVFG / RYYKM

380V   AC3Φ     50HZ

Configuration:

1. 4-SHAFT LEAD  EDGE FEEDER WITH VACUUM TRANSFER ------------------

2. PRINTING UNIT --------------------------------------------------------------------------------

Printer I: LPI Ceramic Anilox against Chamber system

Printer II: LPI Ceramic Anilox against Chamber system

Printer III: LPI Ceramic Anilox against Rubber Roller

Printer IV:LPI Ceramic Anilox against Rubber Roller

Top Printing with Vacuum Suction Transfer Included

3. SLOTTER & CREASER  ------------------------------------------------------

4. ROTARY DIECUTTER WITH SERVO COMPENSATOR ---------------------------

5. Top Loading Counter & Ejector ---------------------------------------

Valco glue system US$23,700.00

6. Auto strapping machine Transpack US$42,000.00

7. Scraper Remover

COMPUTERIZED CONTROL SYSTEM FOR WHOLE MACHINE

Shipment : Delivery within 150 days upon receipt of down payment

Payment : 30% of the total amount should be paid in cash as deposit upon receipt of the proforma invoice and 70% by TT before shipment after you test running in our factory.

Technical Service :

1. Seller should test and run the machine before shipment.

2. Seller should send TWO engineers to the Buyer' s factory to install the machine and Seller should send two technicians to the buyer’s end as required to install the machinery.

train the workers of the Buyer. All expenses at the Buyer' s end, such as traffic, All the expenses at buyer’s end, such as traveling and accommodation, shall be for the
accommodation, etc., should be for the Buyer' s account. BUYER’ s account.

Warranty Period : One year.

Validity : 90 days from the quotation date.

Others : The specification and pricing subject to the final sales confirmation.
