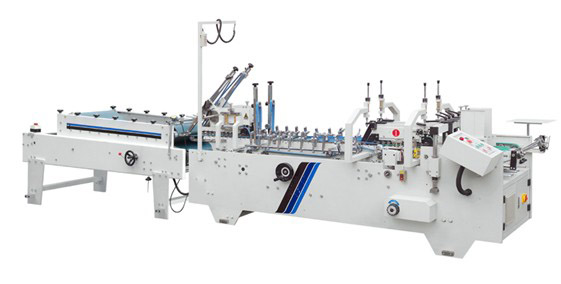

RYSH-B Coffee Cup Sleeve Folder Gluer Machine

RYSH-B high speed automatic paste box machine possesses the RYSH-800 all functions, Use of imported electrical appliances, and accessories for export with a rubber roller Paper can be pressed together by the processes as well as possesses the features of beautiful modeling, high speed and can made more wide boxes etc. Which can paste and manufacture from Widely uses in paste process for medicine box, wine box, cosmetics box and electric equipment package etc., It’s essential equipment in packing printing industry.

Main Technological Parameters:

RYSH-800B

Type of box	(Amax)	(Amin)	(Bmax)	(Bmin)	(Cmin)	(Dmin)	(Fmin)
box	700mm	70mm	600mm	110mm	8mm	70mm	51mm

Characteristics:

Linear velocity	0～220m/min
Suitable paper quality	220～800g／m² carton paper and E wave corrugated paper
Paste box basic form	One-side edge pastes, two-side edge pastes.
Feeding way	Automatically and continuously feeding
Adhesive	Solute type
Needed power	AC220V  3.5KW
Weight	1800KG
Overall Size	5500×850(1300)×1300mm
The scope of Count	0～999999

The machine package size:

Model	Size(L*W*H)(mm)	Weight(kg)	Volume(㎡)
RYSH-800B	2900*1090*1250	700/630	3.95
	2600*1030*1060	380/310	2.83

Machine for coffee cup sleeve:

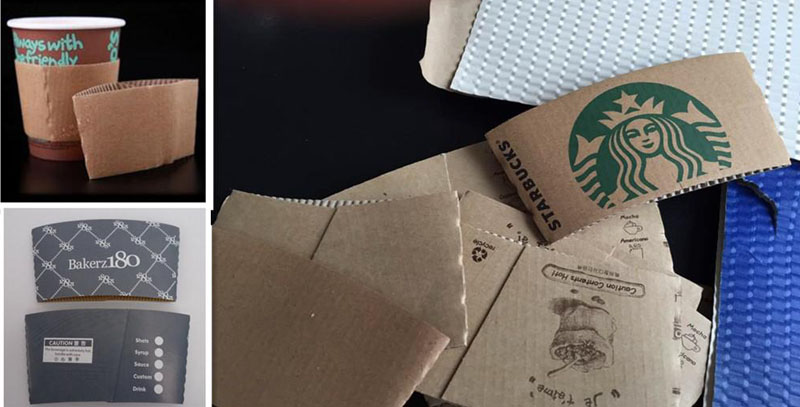

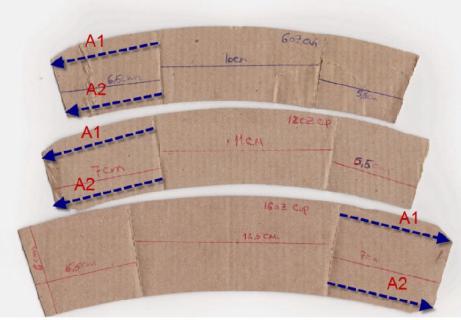

Samples for coffee cup sleeve

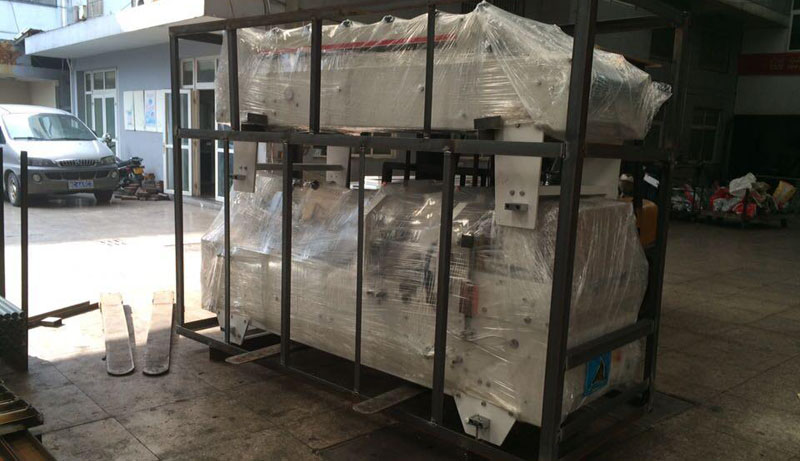

Machine Packing photo:
