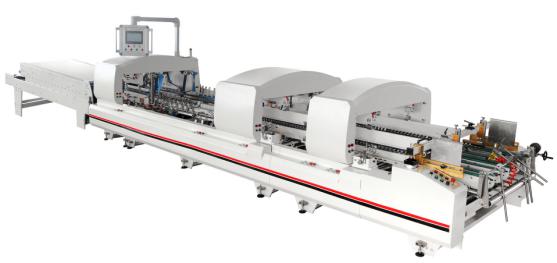

RYGT-3F Automatic Pre-Fold High Speed Corrugated Box Folder Gluer

Introduction:

RYGT-3F series high speed automatic corrugated folder gluer are using imported electrics and parts, especially for export, able to pre-press the paper and have a better pasting effect, able to pre-press the paper and have a better pasting effect, also have a wide application, this series have features like nice appearance, high speed, flexible adjustment ,big width range. Special for making boxes from flute F, E, C, B like wine box, carton box, average speed 8000pcs/hr depends on different box size, this series widely applied to wine factory carton factory and the other post press finishing, this series save labor force by four fifths, also reduce the glue by two thirds, it’s preferred product for post-press finishing.

Technical Parameter



Type of Box	Model	RYGT-3F-1250		RYGT-3F-1450		RYGT-3F-1650
		Max	Min	Max	Min	Max	Min
Common Box	A	1200	200	1200	200	1200	200
	B	1200	220	1400	220	1600	220
	C	40	15	40	15	40	15
	D	1000	150	1000	150	1000	150
	F	600	110	700	110	800	110
Flat Box	A	1200	170	1200	170	1200	170
	B	1200	240	1400	240	1600	240
	C	40	20	40	20	40	20
	D	1000	110	1000	110	1000	110
	F	600	110	700	110	800	110



MODEL	KIND OF SHEET (MAX)	MAX SPEED	REQUIRED POWER	DIMENSION (L×W×H/M)	NET WEIGHT (APPT)
RYGT-3F-1250	Carton 230-800g F,E,B,A flute	480m/min	15KW	14.8×2×1.5	8T
RYGT-3F-1450	Carton 230-800g F,E,B,A flute	480m/min	16KW	14.8×2.2×1.5	9.5T
RYGT-3F-1650	Carton 230-800g F,E,B,A flute	480m/min	18KW	14.8×2.4×1.5	11T

Specifications

Treatment for folder gluer Full-automatic folder-gluing machine.

Pretreatment for sealing and glue coating.

System Configuration:

Paired-pulse high-frequency occurrence of the second inverter system

Can be run in accordance with the automatic speed adjustment to achieve power.

To set the speed and power to match the scope of work pressure nozzle, automatic restart.

Low speed protection value

180-260V wide-range regulators, air pressure automatic adjustment of PID control

A variety of fault detection alarm, multi-level password protection

Assembly of imported parts, cost-effective

*Subject to changes without notice

Machine Details

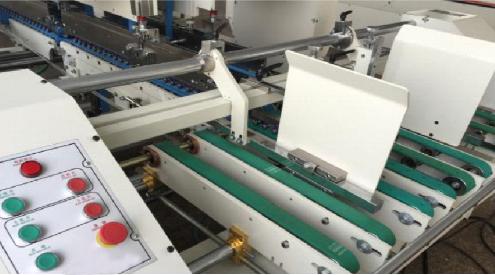

1.Feeder parts

Releasing section adopt widened belt with suction device, to ensure continuous, precise, and auto feeding.

2.Folding parts

Speed of outer folding belts can be adjusted, completely avoiding fishtail box .

The second crease is 180° and the fourth crease is 180° also.
